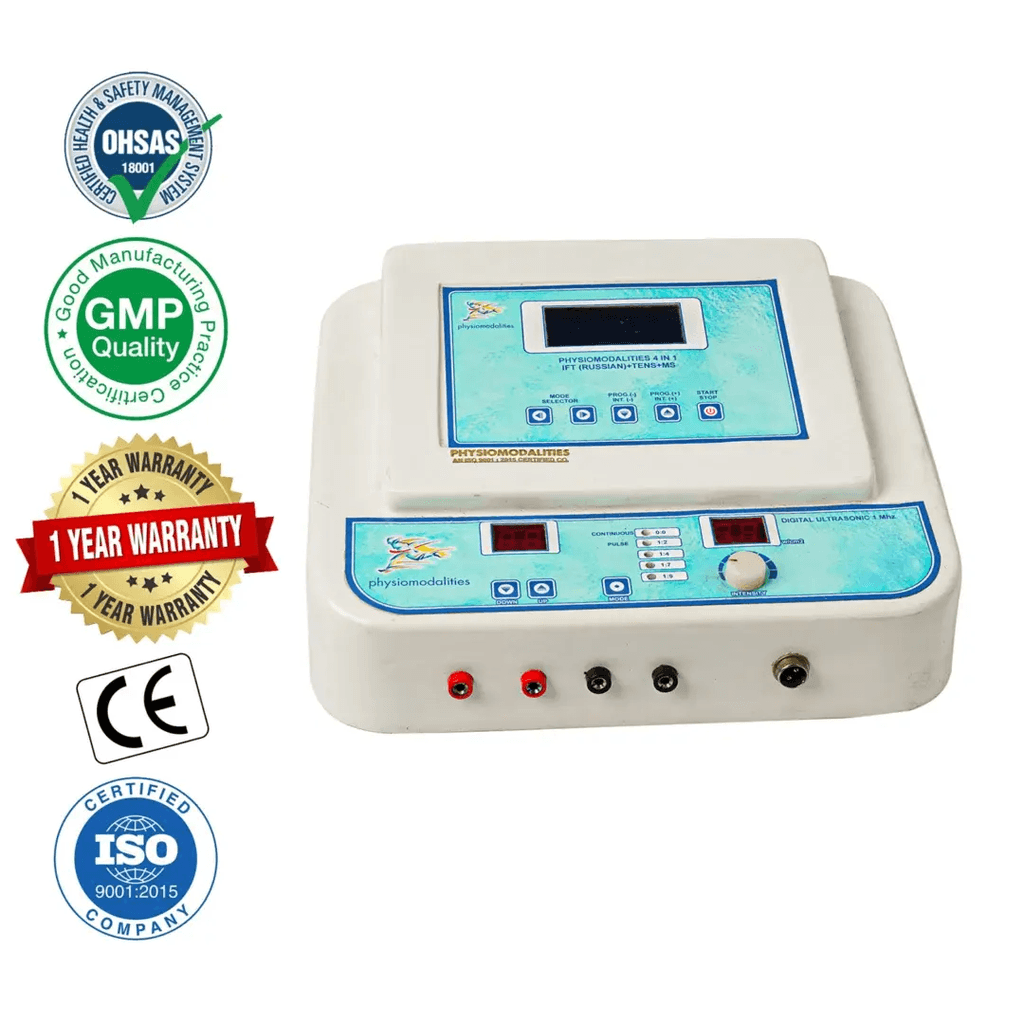

The 4-in-1 Microcontrolled Physiotherapy Machine is a professional multi-therapy system designed to combine four physiotherapy modalities in one compact treatment unit. It is intended for physiotherapy clinics, rehabilitation centres, sports rehabilitation facilities, hospitals, orthopaedic practices, and other professional treatment environments where multiple therapy options may be required.
A 4-in-1 Microcontrolled Physiotherapy Machine can help reduce the need for several separate therapy units by integrating multiple treatment functions into a single electronically controlled platform. Depending on the exact model, the four modalities may include commonly used therapies such as IFT, TENS, Muscle Stimulation, and Ultrasonic Therapy, or another manufacturer-specific configuration.
The microcontrolled design allows the machine’s electronic system to manage treatment functions, programs, intensity settings, timers, and other parameters according to the model. Because 4-in-1 machines are available in different configurations, the exact modalities and technical specifications should always be confirmed from the manufacturer’s datasheet before purchase.
This type of 4-in-1 Physiotherapy Machine is particularly useful for clinics that want a flexible electrotherapy setup without filling the treatment room with multiple standalone devices.

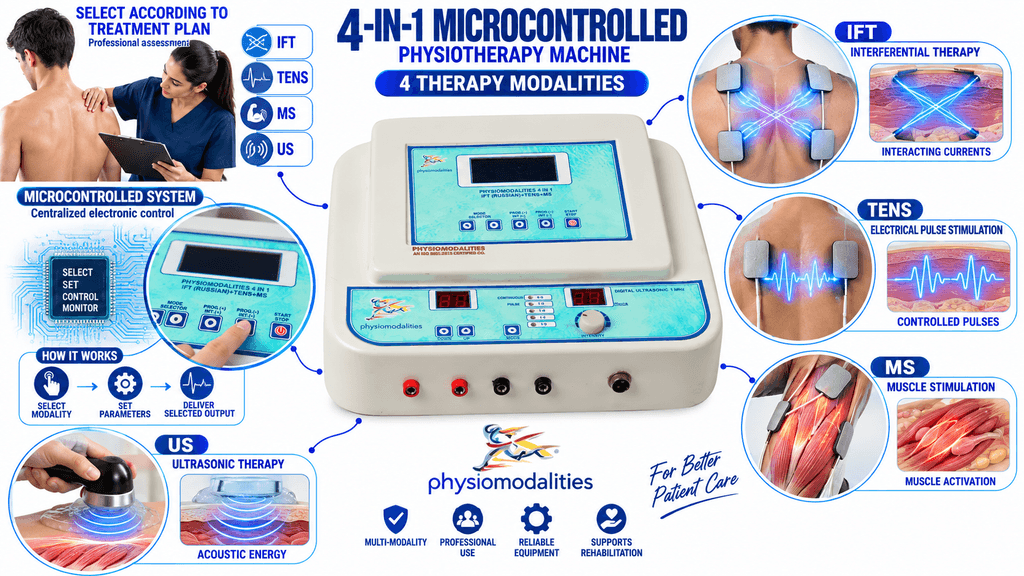

What Is a 4-in-1 Microcontrolled Physiotherapy Machine?
A 4-in-1 Microcontrolled Physiotherapy Machine is an integrated physiotherapy equipment system that brings four therapeutic functions into one machine.
Common configurations can include:
- IFT – Interferential Therapy
- TENS – Transcutaneous Electrical Nerve Stimulation
- MS – Muscle Stimulation
- US – Ultrasonic Therapy
The exact four modalities depend on the particular model. Some manufacturers may configure their 4-in-1 systems differently, so the product specification should be checked before purchase.
Each modality operates using a different therapeutic principle. IFT and TENS use controlled electrical stimulation through surface electrodes, MS provides muscle-focused electrical stimulation, while ultrasonic therapy delivers acoustic energy through a dedicated applicator.
This combination gives physiotherapists access to different treatment approaches through one centralized system.
IFT – Interferential Therapy
Interferential Therapy is an electrotherapy modality that uses controlled electrical currents delivered through surface electrodes.
IFT is commonly incorporated into physiotherapy and rehabilitation programs, particularly when electrical stimulation is considered appropriate for the treatment plan.
The therapist can select suitable parameters according to the patient’s assessment and the capabilities of the machine.
IFT Applications
IFT may be incorporated into:
- Musculoskeletal rehabilitation
- Pain-management programs
- Joint rehabilitation
- Soft-tissue rehabilitation
- Sports physiotherapy
- Post-injury rehabilitation
- General physiotherapy treatment programs
The intensity and treatment parameters should be selected by an appropriately trained professional.
TENS – Transcutaneous Electrical Nerve Stimulation
TENS delivers controlled electrical pulses through electrodes placed on the skin. It is commonly incorporated into physiotherapy pain-management programs.
The TENS function in a 4-in-1 Physiotherapy Machine can eliminate the need for a separate standalone TENS unit where the integrated configuration meets the clinic’s requirements.
Depending on the model, the operator may be able to adjust:
- Intensity
- Frequency
- Pulse width
- Treatment mode
- Treatment duration
TENS Applications
TENS may be incorporated into selected physiotherapy programs involving:
- Musculoskeletal discomfort
- Back-related rehabilitation
- Neck and shoulder rehabilitation
- Joint rehabilitation
- Sports recovery
- Post-injury physiotherapy
- Selected chronic pain-management programs
Treatment settings should be selected according to professional assessment and the manufacturer’s instructions.
MS – Muscle Stimulation
MS, or Muscle Stimulation, uses controlled electrical impulses to produce muscle-focused stimulation.
A muscle stimulation function may be incorporated into rehabilitation programs where muscle activation or re-education is considered appropriate by a qualified professional.
MS Applications
Depending on the treatment plan, MS may be incorporated into:
- Muscle re-education
- Muscle activation
- Sports rehabilitation
- Post-injury rehabilitation
- Selected weakness-management programs
- Rehabilitation exercise protocols
Correct electrode placement and stimulation intensity are important for appropriate operation.
US – Ultrasonic Therapy
The ultrasonic section of the 4-in-1 Microcontrolled Physiotherapy Machine delivers therapeutic acoustic energy through an applicator and suitable coupling medium such as ultrasound gel.
Therapeutic ultrasound may be incorporated into selected physiotherapy and rehabilitation protocols.
Depending on the model, ultrasonic therapy may be available at 1 MHz, 3 MHz, or another specified frequency. Generally, 1 MHz is associated with deeper treatment areas, while 3 MHz is generally associated with more superficial tissues.
Ultrasonic Therapy Features May Include
- Continuous operation
- Pulsed operation
- Adjustable intensity
- Digital treatment timer
- Dedicated ultrasound applicator
- Digital display
- Preset programs on selected models
- Adjustable pulse ratios on selected configurations
The exact frequency, output, intensity, and operating modes should be verified for the selected machine.

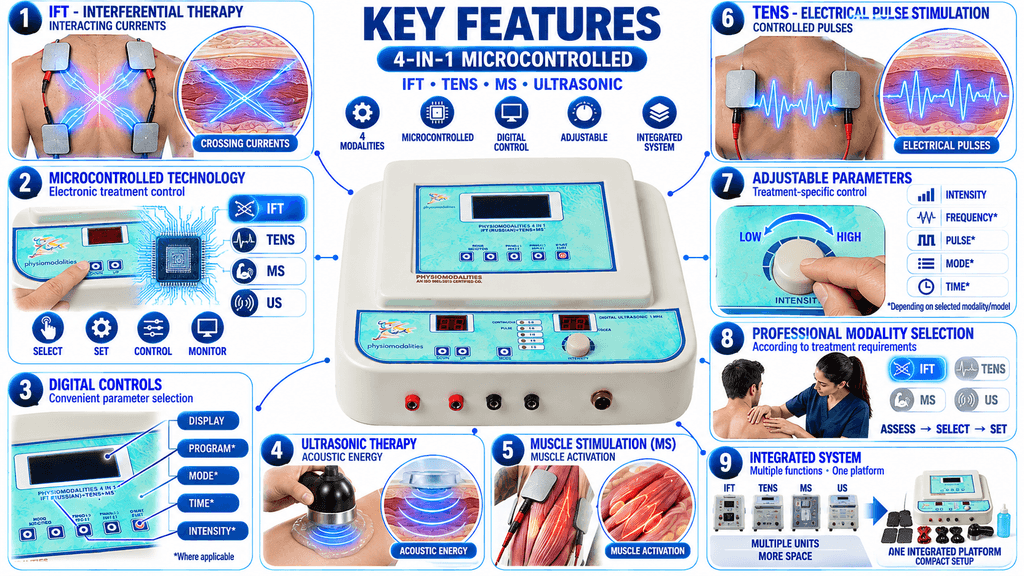

Key Features of the 4-in-1 Microcontrolled Physiotherapy Machine
The 4-in-1 Microcontrolled Physiotherapy Machine is designed to provide several therapy functions within one integrated platform.
Four Therapy Modalities in One Unit
A typical configuration can combine:
- IFT
- TENS
- MS
- Ultrasonic Therapy
The actual combination should be confirmed according to the model.
Microcontrolled Technology
The electronic control system is designed to manage treatment functions and operating parameters through the machine’s control interface.
Digital Controls
Depending on the configuration, the machine may provide digital displays and electronic controls for program selection, intensity, timer, and other settings.
Adjustable Treatment Parameters
Different modalities may offer adjustable parameters such as intensity, frequency, pulse settings, operating mode, and treatment time.
Integrated Treatment System
Multiple therapy functions can be accessed from a single equipment platform.
Space-Efficient Design
A combination machine can reduce the need for multiple standalone units in a treatment room.
Professional Physiotherapy Configuration
The system is designed for trained operators working in physiotherapy and rehabilitation environments.
Applications of a 4-in-1 Physiotherapy Machine
A 4-in-1 Physiotherapy Machine can be incorporated into a variety of professional physiotherapy workflows.
Physiotherapy Clinics
General physiotherapy clinics can use multi-modality equipment when patients require different forms of electrotherapy or ultrasonic therapy.
Rehabilitation Centres
Rehabilitation centres can use the available modalities alongside exercise therapy, manual therapy, mobility training, and other rehabilitation methods.
Sports Rehabilitation
Sports physiotherapy programs may incorporate electrical stimulation or ultrasonic therapy depending on the athlete’s assessment and rehabilitation stage.
Orthopaedic Physiotherapy
The machine can support selected orthopaedic rehabilitation protocols where the available modalities are clinically appropriate.
Pain-Management Programs
IFT and TENS may be incorporated into professional pain-management approaches when appropriate.
Muscle Rehabilitation
The MS function can be incorporated into selected muscle-focused rehabilitation and re-education programs.

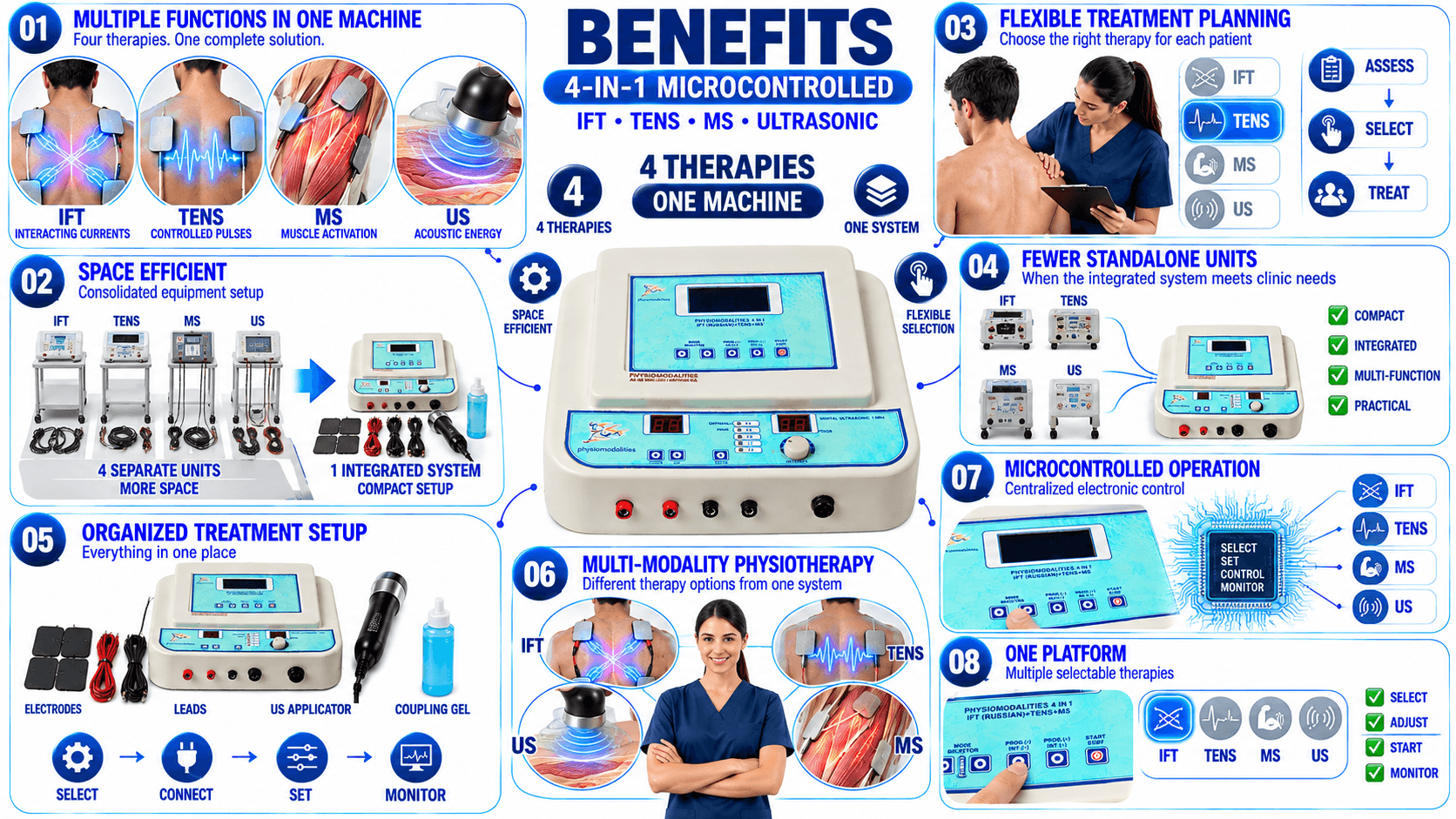

Benefits of a 4-in-1 Combination Physiotherapy Machine
Multiple Functions in One Machine
The main benefit is access to several therapy modalities without requiring a separate machine for every function.
Efficient Use of Space
A consolidated system can be useful in smaller physiotherapy treatment rooms.
Flexible Treatment Planning
The physiotherapist can select the modality that fits the patient’s treatment plan.
Reduced Equipment Duplication
When the integrated configuration meets the clinic’s requirements, fewer standalone devices may be needed.
Organized Treatment Setup
A centralized machine can simplify the arrangement of controls, cables, electrodes, and applicators.
Suitable for Multi-Modality Practices
Clinics that routinely use different electrotherapy modalities can benefit from having several functions available in one system.

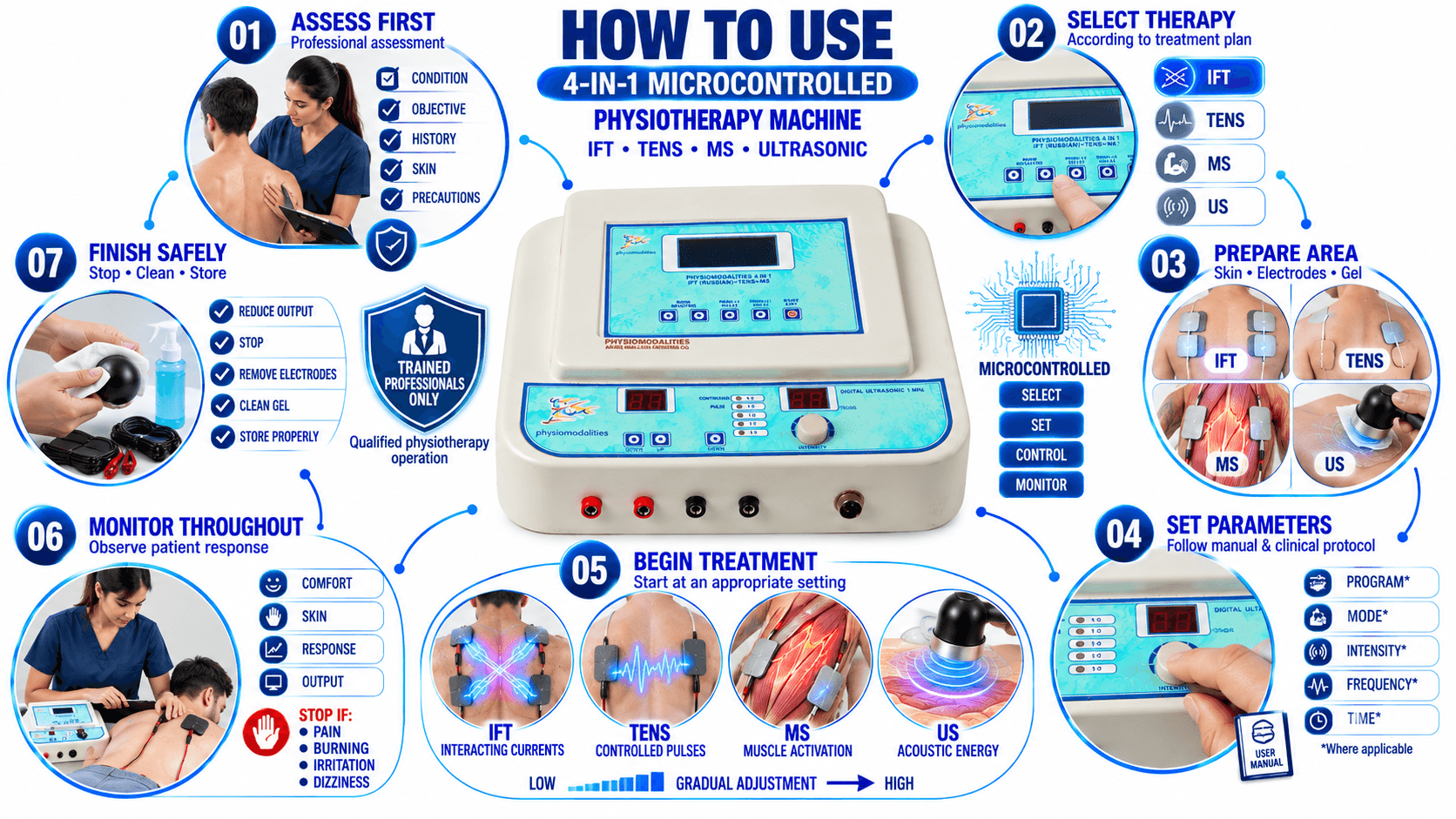

How to Use the 4-in-1 Microcontrolled Physiotherapy Machine
The equipment should be operated only by a qualified physiotherapist or appropriately trained healthcare professional.
Step 1: Assess the Patient
Review the patient’s condition, treatment objective, relevant history, skin condition, and contraindications associated with the intended modality.
Step 2: Select the Required Modality
Choose the appropriate function:
- IFT
- TENS
- MS
- US
Do not use a modality simply because it is available. Treatment selection should be based on professional assessment.
Step 3: Prepare the Treatment Area
For IFT, TENS, and MS, prepare the skin and position electrodes according to the treatment protocol.
For ultrasonic therapy, apply an appropriate coupling medium such as ultrasound gel.
Step 4: Set the Parameters
Select the required program or manually configure the treatment parameters according to the machine’s manual and clinical protocol.
Step 5: Start Treatment
Begin at an appropriate setting. For electrical stimulation, intensity should be adjusted gradually when clinically appropriate.
For ultrasonic therapy, operate the applicator according to the recommended technique.
Step 6: Monitor the Patient
Monitor the patient throughout the treatment session. Stop treatment if unusual pain, burning, excessive discomfort, skin irritation, dizziness, or another concerning response occurs.
Step 7: Finish the Session
Reduce the electrical output before disconnecting electrodes. Clean and store reusable accessories according to the manufacturer’s instructions.
Safety Precautions
Safety is essential when operating a 4-in-1 Microcontrolled Physiotherapy Machine.
- Operate the equipment according to the manufacturer’s manual.
- Only trained professionals should operate electrotherapy equipment.
- Do not place electrical stimulation electrodes across the chest or front of the neck.
- Patients with implanted electronic devices require appropriate professional evaluation before electrical stimulation is considered.
- Avoid placing electrodes over damaged or compromised skin unless specifically directed by an appropriate healthcare professional.
- Use suitable coupling gel during ultrasonic therapy.
- Follow the recommended ultrasound applicator technique.
- Do not operate ultrasound without an appropriate coupling medium.
- Monitor the patient’s skin and comfort during treatment.
- Inspect electrodes, leads, cables, connectors, and applicators before use.
- Do not use damaged equipment or accessories.
- Follow the contraindications specified by the manufacturer.
- Stop treatment if the patient experiences an unexpected or significant reaction.
- Keep the machine away from water and unnecessary moisture.
- Use only the specified electrical supply.
Technical Specifications
Specifications vary between manufacturers and individual models. The table below should therefore be used as a general framework until the exact product datasheet is confirmed.
| Specification | Typical / Model-Dependent Configuration |
|---|---|
| Product Type | 4-in-1 Microcontrolled Physiotherapy Machine |
| Therapy 1 | IFT – Interferential Therapy |
| Therapy 2 | TENS – Transcutaneous Electrical Nerve Stimulation |
| Therapy 3 | MS – Muscle Stimulation |
| Therapy 4 | US – Ultrasonic Therapy |
| Control System | Microcontrolled / Electronic |
| Display | Digital / LCD depending on model |
| Programs | Model-dependent |
| Timer | Adjustable / model-dependent |
| Intensity | Adjustable |
| Ultrasound Frequency | Model-dependent |
| Ultrasound Mode | Continuous / Pulsed depending on model |
| Electrical Channels | Model-dependent |
| Treatment Modes | Modality-specific |
| Power Supply | Model-dependent |
| Ultrasound Applicator | According to configuration |
| Electrode Leads | According to configuration |
| Electrodes | According to configuration |
| Construction | Model-dependent |
| Warranty | Confirm with supplier/manufacturer |
Important: Exact voltage, ultrasound frequency, output intensity, channel count, programs, dimensions, accessories, and warranty should be taken from the manufacturer’s technical documentation for the specific model.

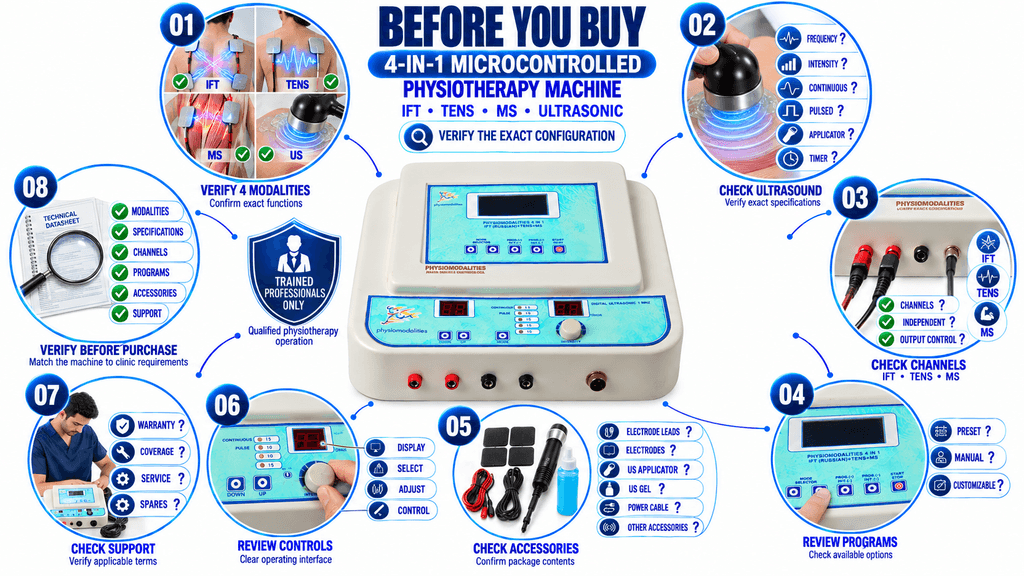

Things to Consider Before Buying
Before purchasing a 4-in-1 Microcontrolled Physiotherapy Machine, consider the actual configuration rather than relying only on the “4-in-1” label.
Verify the Four Modalities
Confirm exactly which four functions are included in the machine.
Check Ultrasound Specifications
If ultrasonic therapy is important for your clinic, verify:
- Frequency
- Maximum intensity
- Continuous mode
- Pulsed mode
- Applicator size
- Treatment timer
Check Electrical Channels
For IFT, TENS, and MS, verify the number of channels and whether outputs can be controlled independently.
Review Programs
Check whether programs are preset, manually adjustable, or customizable.
Check Accessories
Confirm whether the package includes:
- Electrode leads
- Electrodes
- Ultrasound applicator
- Ultrasound gel
- Power cable
- Other modality-specific accessories
Review Display and Controls
A clear digital interface can make treatment parameter selection easier for trained operators.
Confirm Warranty and Service
Check warranty duration, coverage, service availability, and replacement accessory support before purchasing.

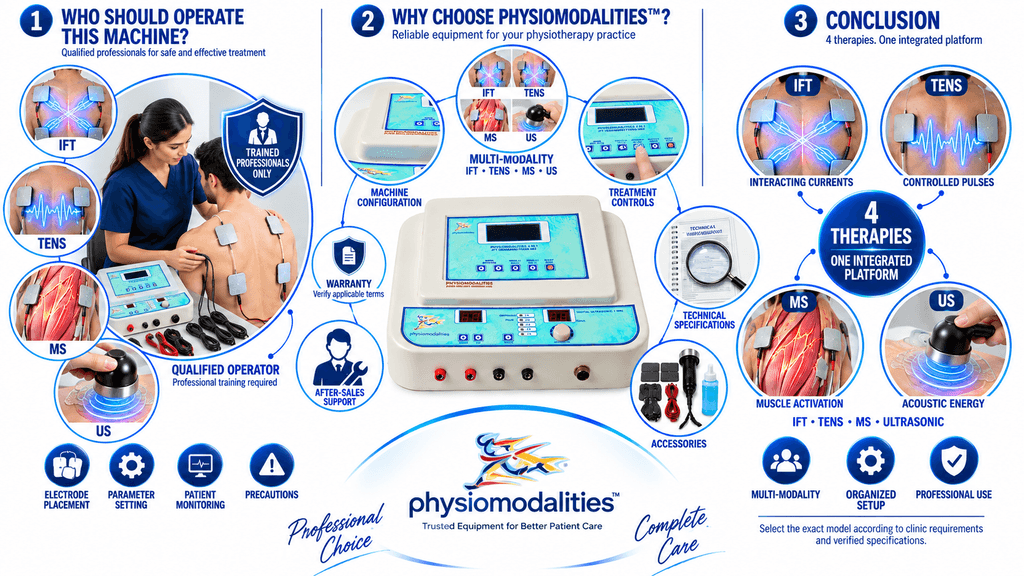

Who Should Operate This Machine?
The 4-in-1 Microcontrolled Physiotherapy Machine should be operated by a qualified physiotherapist or appropriately trained healthcare professional.
The operator should understand:
- IFT operation
- TENS parameters
- Muscle stimulation
- Ultrasonic therapy
- Electrode placement
- Treatment duration
- Patient monitoring
- Contraindications
- Equipment maintenance
Professional training is important because the four modalities have different treatment principles and safety requirements.
Why Choose PHYSIOMODALITIES™?
PHYSIOMODALITIES™ focuses on physiotherapy and rehabilitation equipment for professional treatment environments.
A microcontrolled combination machine can be a practical option for clinics that need several therapy functions while maintaining a consolidated treatment setup.
When selecting a PHYSIOMODALITIES™ combination machine, consider:
- Required therapy modalities
- Technical specifications
- Control system
- Programs
- Accessories
- Machine construction
- Warranty
- After-sales service
The exact model should be selected according to the clinic’s clinical requirements and workflow.
Conclusion
The 4-in-1 Microcontrolled Physiotherapy Machine provides a consolidated approach to multi-modality physiotherapy by integrating four treatment functions into one professional system. A common configuration includes IFT, TENS, MS, and Ultrasonic Therapy, although the exact combination can vary by model.
The microcontrolled design provides an electronic platform for managing treatment functions and parameters, while the integrated configuration can help clinics reduce equipment duplication and make better use of treatment-room space.
For physiotherapy clinics, rehabilitation centres, sports therapy facilities, and professional treatment environments, a 4-in-1 Physiotherapy Machine can provide flexible access to different electrotherapy and ultrasonic treatment options.
Before purchasing, it is important to verify the exact four modalities, ultrasound frequency and output, electrical channels, programs, timer, accessories, warranty, and after-sales support. The machine should always be operated by an appropriately trained professional according to patient assessment and the manufacturer’s instructions.
Frequently Asked Questions
1. What is a 4-in-1 Microcontrolled Physiotherapy Machine?
It is a multi-therapy physiotherapy system that integrates four treatment modalities into one electronically controlled machine.
2. Which therapies are commonly included in a 4-in-1 machine?
A common configuration includes IFT, TENS, MS, and Ultrasonic Therapy. However, the exact four modalities depend on the specific model.
3. Can this machine be used in a physiotherapy clinic?
Yes. It is designed for professional physiotherapy and rehabilitation environments when operated by appropriately trained professionals.
4. Does every 4-in-1 machine have the same specifications?
No. Program count, electrical channels, ultrasound frequency, output, controls, accessories, and even the modality combination can vary between models.
5. What should I check before buying a 4-in-1 Physiotherapy Machine?
Check the exact four modalities, ultrasound specifications, electrical channels, programs, timer, accessories, power requirements, warranty, and after-sales service.
