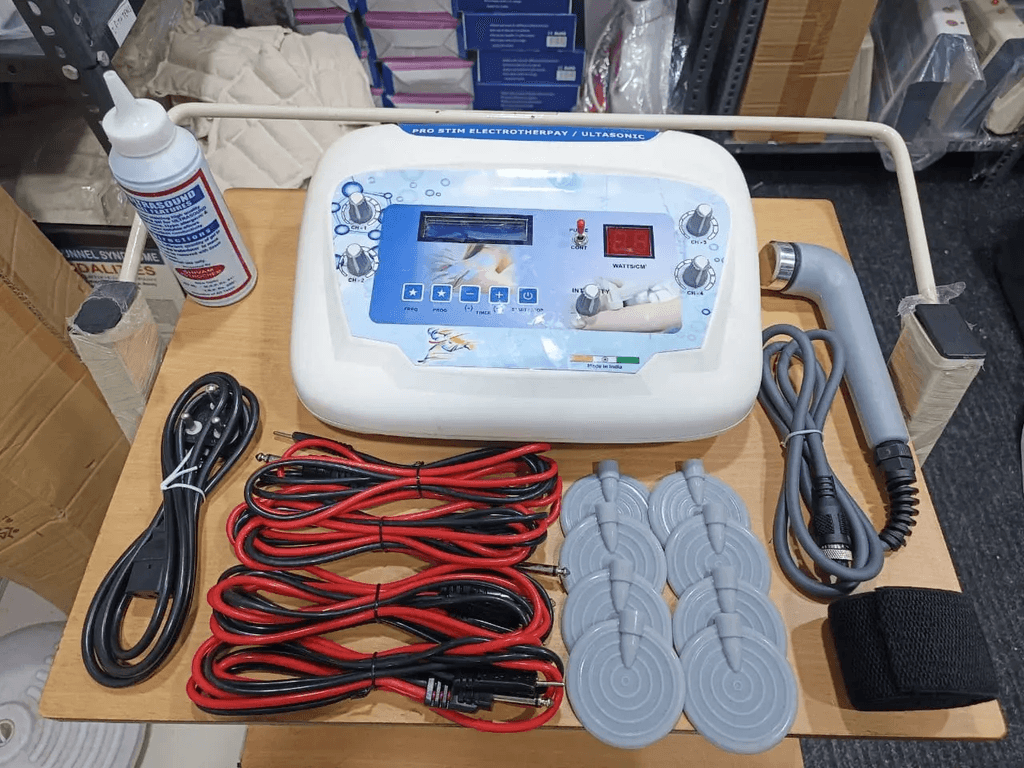

The 4 Channel Electrotherapy + Ultrasonic Combination Physiotherapy Machine is a versatile electrotherapy and rehabilitation device designed to combine multi-channel electrical stimulation with Ultrasonic Therapy in one professional physiotherapy system. It can be used in physiotherapy clinics, rehabilitation centers, sports injury facilities, hospitals, and home-care settings under appropriate professional guidance.
With multiple electrotherapy channels and an integrated ultrasonic therapy section, this 4 Channel Electrotherapy + Ultrasonic Combination Physiotherapy Machine helps practitioners manage different treatment requirements while saving clinical space and reducing the need for separate equipment.
What Is a 4 Channel Electrotherapy + Ultrasonic Combination Physiotherapy Machine?
A 4 Channel Electrotherapy + Ultrasonic Combination Physiotherapy Machine combines four-channel electrical stimulation with therapeutic ultrasonic energy in a single unit.
The electrotherapy section allows multiple electrode connections, while the ultrasonic section uses an applicator and coupling gel to deliver acoustic energy to the selected treatment area. Depending on the exact model configuration, electrical stimulation may include TENS, IFT, MS or other electrotherapy modes.
This makes the machine suitable for clinics that require a flexible 4 Channel Electrotherapy Machine together with an Ultrasonic Physiotherapy Machine.
Electrotherapy Section
The 4-channel electrotherapy system is designed to provide controlled electrical stimulation through surface electrodes.
Depending on the model, available functions may include:
- TENS therapy
- IFT therapy
- Muscle stimulation (MS)
- Adjustable intensity
- Multiple treatment channels
- Digital controls
- Treatment timer
- Manual or programmed treatment modes
The four-channel configuration can provide greater flexibility when a practitioner needs to connect multiple electrode pairs during a treatment session.
Ultrasonic Therapy Section
The integrated ultrasonic section delivers acoustic energy through a treatment applicator using suitable coupling gel.
Ultrasonic physiotherapy systems commonly provide:
- Continuous and pulsed operation
- Adjustable treatment intensity
- Treatment timer
- Digital controls or display
- Lightweight ultrasonic applicator
- Coupling-gel application
Ultrasonic frequency options can vary by model. 1 MHz is generally associated with deeper treatment areas, while 3 MHz is generally used for more superficial areas. Always follow the specifications and operating instructions of the particular machine.
Key Features
- 4-channel electrotherapy output
- Integrated Ultrasonic Therapy
- Combination electrotherapy and ultrasound system
- Multiple treatment modes depending on model
- Adjustable treatment intensity
- Digital controls/display
- Adjustable treatment timer
- Continuous and pulsed ultrasonic modes on applicable models
- Compact clinic-friendly design
- Easy-to-use control panel
- Suitable for physiotherapy and rehabilitation environments
- Supports multiple treatment requirements from one machine
- Designed for professional physiotherapy applications
Applications
The 4 Channel Electrotherapy + Ultrasonic Combination Physiotherapy Machine may be incorporated into professional treatment programs involving:
- Pain-management programs
- Muscle stimulation and re-education
- Rehabilitation exercises
- Sports rehabilitation
- Musculoskeletal physiotherapy
- Post-injury rehabilitation
- General physical rehabilitation
- Muscle-focused therapy programs
- Physiotherapy clinic treatments
Treatment selection should always be based on the patient’s condition and professional assessment.
Benefits
Multi-Channel Electrotherapy
Four electrical stimulation channels provide flexibility for different electrode arrangements and treatment requirements.
Combined Therapy Platform
The combination of electrotherapy and ultrasonic therapy allows practitioners to access two commonly used physiotherapy modalities from a single machine.
Space Saving
Instead of requiring separate units for every modality, a combination system can help optimize treatment-room space.
Flexible Treatment Settings
Depending on the model, practitioners can adjust parameters such as intensity, mode, frequency, pulse settings and treatment duration.
Clinic-Friendly Operation
Digital controls and an organized interface can make routine treatment setup easier for trained operators.
4 Channel Electrotherapy vs Ultrasonic Therapy
| Feature | 4 Channel Electrotherapy | Ultrasonic Therapy |
|---|---|---|
| Energy type | Controlled electrical stimulation | Acoustic energy |
| Application | Surface electrodes | Applicator + coupling gel |
| Channels | 4 channels | Applicator-based |
| Common modes | TENS, IFT, MS, model-dependent | Continuous/pulsed |
| Main use | Pain-management and muscle-focused rehabilitation programs | Therapeutic ultrasound applications |
| Treatment control | Intensity, mode, timer, model-dependent | Intensity, mode, timer, model-dependent |

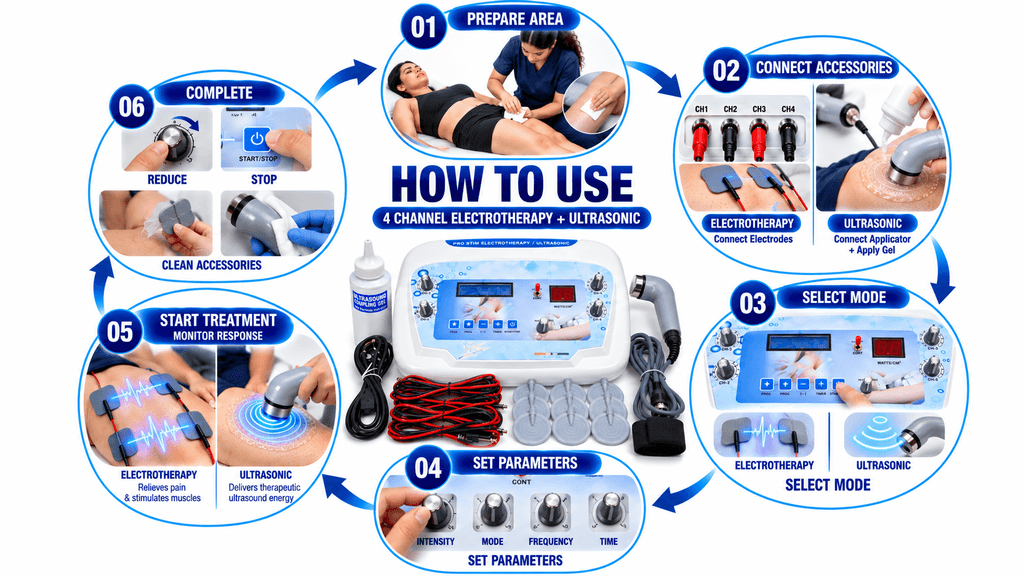

How to Use the Machine
Step 1: Prepare the Treatment Area
Position the patient comfortably and clean the electrode/application area as appropriate.
Step 2: Connect Electrodes or Ultrasound Applicator
For electrotherapy, connect the required electrode leads and pads securely. For ultrasonic therapy, connect the applicator and use suitable coupling gel.
Step 3: Select the Treatment Mode
Choose the required electrotherapy program or ultrasonic mode according to the treatment plan and machine manual.
Step 4: Set Treatment Parameters
Adjust intensity, mode, frequency/pulse settings and treatment duration according to professional assessment and manufacturer instructions.
Step 5: Start the Treatment
Begin treatment at an appropriate setting and monitor the patient’s response throughout the session.
Step 6: Complete the Session
Reduce the intensity before stopping electrical stimulation, then switch off the equipment and clean/store accessories according to the manufacturer’s instructions.
Safety Precautions
- Operate the machine according to the manufacturer’s manual.
- Electrical stimulation should not be applied across the chest or front of the neck.
- Patients with implanted electronic devices should receive professional medical guidance before electrotherapy.
- Do not place electrodes over damaged or unsuitable skin areas.
- Use appropriate coupling gel during ultrasonic therapy.
- Avoid leaving the ultrasonic applicator stationary when the treatment protocol requires movement.
- Check cables, electrodes and applicator before use.
- Stop treatment if unusual discomfort or adverse symptoms occur.
- Use only by appropriately trained personnel for clinical applications.
Technical Specifications
Exact specifications can vary by manufacturer and model. A typical 4 Channel Electrotherapy + Ultrasonic Combination Physiotherapy Machine may include:
| Specification | Typical Configuration |
|---|---|
| Product Type | Combination Physiotherapy Machine |
| Electrotherapy Channels | 4 Channels |
| Electrotherapy | TENS / IFT / MS or model-dependent |
| Ultrasonic Therapy | Integrated |
| Ultrasonic Frequency | Model-dependent, commonly 1 MHz or 1 & 3 MHz |
| Ultrasound Mode | Continuous / Pulsed, model-dependent |
| Intensity | Adjustable |
| Timer | Digital/Adjustable |
| Display | Digital/LED, model-dependent |
| Electrodes | Multiple electrode pads |
| Applicator | Ultrasonic applicator |
| Power Supply | Model-dependent |
| Intended Environment | Physiotherapy clinics, rehabilitation centers and professional treatment settings |
Note: Confirm the manufacturer’s datasheet for exact frequency, output intensity, programs, dimensions, power consumption and included accessories before publishing model-specific specifications.
Who Should Operate This Machine?
The machine should be operated by a trained physiotherapist or other appropriately qualified healthcare professional who understands electrical stimulation, ultrasonic therapy, treatment parameters and contraindications.
Why Choose PHYSIOMODALITIES™?
PHYSIOMODALITIES™ provides a range of physiotherapy and electrotherapy equipment designed for professional rehabilitation environments. Its product range includes TENS, IFT, MS, Ultrasonic and combination physiotherapy machines.
For clinics looking for a flexible 4 Channel Electrotherapy + Ultrasonic Combination Physiotherapy Machine, combination equipment can provide access to multiple treatment modalities while helping optimize equipment requirements.
Why Choose This Combination Machine?
The 4 Channel Electrotherapy + Ultrasonic Combination Physiotherapy Machine is particularly useful for clinics looking for:
- 4-channel electrical stimulation
- Integrated ultrasonic therapy
- Multiple treatment options
- Digital treatment controls
- Space-efficient equipment
- Professional physiotherapy applications
- A combination alternative to separate electrotherapy and ultrasonic machines
Conclusion
The 4 Channel Electrotherapy + Ultrasonic Combination Physiotherapy Machine brings multi-channel electrotherapy and Ultrasonic Therapy together in one practical physiotherapy system. Its combination design can support different rehabilitation workflows, including pain-management programs, muscle-focused stimulation and therapeutic ultrasound applications.
For physiotherapy clinics, rehabilitation centers and professional treatment facilities, this type of 4 Channel Electrotherapy Machine with Ultrasonic Therapy can provide a versatile platform for different treatment requirements.
Frequently Asked Questions
1. What is a 4 Channel Electrotherapy + Ultrasonic Combination Physiotherapy Machine?
It is a combination physiotherapy device that integrates four-channel electrical stimulation with Ultrasonic Therapy in one machine.
2. What therapies can be available on the electrotherapy section?
Depending on the model, it may include TENS, IFT, MS or other electrical stimulation modes.
3. What is the purpose of Ultrasonic Therapy?
Ultrasonic Therapy uses acoustic energy delivered through an applicator and coupling gel and may be incorporated into physiotherapy treatment plans according to professional assessment.
4. Can four channels be used simultaneously?
The four-channel design provides multiple output channels, but simultaneous use and the permitted treatment configurations depend on the specific model and manufacturer instructions.
5. Is this machine suitable for physiotherapy clinics?
Yes. A combination system can be suitable for professional physiotherapy and rehabilitation environments when operated by appropriately trained personnel.
