The 4-Ch TENS + US + Deep Heat Combo Physiotherapy Machine is a multifunctional physiotherapy system designed to combine three commonly used therapy modalities in one compact clinical unit. It integrates 4-channel TENS, Ultrasonic Therapy and Deep Heat Therapy, giving physiotherapists greater flexibility when planning electrotherapy, thermal therapy and rehabilitation sessions.
The 4-channel TENS section provides multiple electrical stimulation outputs, while the Ultrasonic and Deep Heat functions add separate treatment options for suitable physiotherapy applications. This combination can help clinics reduce the need for multiple individual machines and maintain a more organised treatment setup.
The system is suitable for physiotherapy clinics, rehabilitation centres, sports rehabilitation facilities, hospitals and other professional therapy environments.
PHYSIOMODALITIES™ provides practical physiotherapy and rehabilitation equipment designed for professional clinical use.
What Is a 4-Ch TENS + US + Deep Heat Combo Physiotherapy Machine?
A 4-Ch TENS + US + Deep Heat Combo Physiotherapy Machine is a three-modality combination therapy system that brings together:
- 4-Channel TENS for controlled electrical stimulation
- Ultrasonic Therapy (US) for therapeutic acoustic-energy application
- Deep Heat Therapy for controlled therapeutic heating
Instead of purchasing separate equipment for each function, a combination machine provides these modalities through one workstation.
The 4-channel TENS configuration can provide multiple electrode output arrangements, while the Ultrasonic and Deep Heat sections can be selected when those therapies are appropriate for the patient’s treatment plan.
How Does the 4-Ch Combination Machine Work?
Each modality uses a different form of therapeutic energy and therefore has its own application method.
4-Channel TENS Therapy
TENS, or Transcutaneous Electrical Nerve Stimulation, delivers controlled electrical pulses through surface electrodes.
The four-channel configuration gives the therapist multiple output options for electrode placement and treatment planning. TENS may be incorporated into physiotherapy programs for pain-management support and selected rehabilitation applications.
Ultrasonic Therapy
Ultrasonic Therapy uses therapeutic acoustic energy delivered through an applicator with an appropriate coupling medium.
The applicator is applied to the selected treatment area according to the professional treatment protocol. Ultrasonic Therapy may be incorporated into selected soft-tissue and musculoskeletal rehabilitation programs.
Deep Heat Therapy
Deep Heat provides controlled thermal therapy for appropriate treatment applications. Depending on the equipment design, the heat function may be used as part of a physiotherapy session alongside exercise therapy, stretching, manual therapy or other modalities.
The therapist should select the appropriate heat level and treatment duration according to the patient’s tolerance and clinical requirements.
Key Features
4-Channel TENS
The machine provides four TENS channels for flexible electrode-based treatment arrangements.
Ultrasonic Therapy
The integrated Ultrasonic section provides a dedicated modality for therapeutic acoustic-energy application.
Deep Heat Function
The Deep Heat section provides controlled thermal therapy for suitable physiotherapy applications.
Three Modalities in One Unit
TENS, Ultrasonic Therapy and Deep Heat are combined into one machine, helping reduce the requirement for separate treatment equipment.
Adjustable Treatment Parameters
Depending on the model configuration, therapists can adjust intensity, treatment duration and other available parameters.
Digital Controls
The control interface allows the operator to select the desired therapy and monitor relevant treatment settings.
Space-Saving Design
A combination system can help reduce equipment clutter and make efficient use of the treatment room.
Professional Clinical Application
The machine is designed for trained physiotherapists and rehabilitation professionals working in clinical environments.
Applications of 4-Ch TENS + US + Deep Heat Combo Physiotherapy Machine
The 4-Ch TENS + US + Deep Heat Combo Physiotherapy Machine can be incorporated into different physiotherapy and rehabilitation programs.
Pain-Management Support
TENS may be incorporated into selected pain-management programs under professional supervision.
Sports Rehabilitation
The combination of electrical, Ultrasonic and thermal therapy provides multiple options for sports rehabilitation programs.
Soft-Tissue Rehabilitation
Ultrasonic Therapy can be included in selected soft-tissue and musculoskeletal treatment plans.
Joint Rehabilitation
Different modalities can be selected according to the patient’s assessment and rehabilitation goals.
Muscle Rehabilitation
TENS and Deep Heat may be incorporated alongside exercise-based rehabilitation where clinically appropriate.
Back and Neck Physiotherapy
TENS, Ultrasonic Therapy and Deep Heat may each have a role in selected back and neck physiotherapy programs.
General Physiotherapy
The multifunctional design makes the equipment suitable for clinics treating a broad range of rehabilitation requirements.
Potential Benefits
A 4-Ch TENS + US + Deep Heat Combo Physiotherapy Machine offers several practical advantages for professional clinics:
- Three therapy functions in one machine
- Four-channel TENS configuration
- Multiple electrode output options
- Integrated Ultrasonic Therapy
- Integrated Deep Heat
- Adjustable treatment parameters
- Reduced need for separate machines
- Better use of treatment-room space
- Flexible modality selection
- Suitable for physiotherapy and rehabilitation
- Useful for sports therapy environments
- Centralised equipment management
The actual therapeutic response depends on the patient’s condition, treatment parameters, correct application and the overall rehabilitation plan.
TENS vs Ultrasonic vs Deep Heat
| Feature | 4-Channel TENS | Ultrasonic Therapy | Deep Heat |
|---|---|---|---|
| Therapy type | Electrical stimulation | Acoustic energy | Thermal therapy |
| Main accessory | Electrodes | Applicator + coupling medium | Heat applicator/system |
| Common application | Pain-management support | Soft-tissue/musculoskeletal therapy | Therapeutic heating |
| Treatment control | Pulse/intensity settings | Frequency/intensity/time | Heat/intensity/time |
| Application method | Surface electrodes | Applicator movement | Controlled heat application |
| Primary role | Electrotherapy | Ultrasonic therapy | Thermal therapy |
Common Treatment Applications
| Treatment Requirement | Commonly Selected Modality |
|---|---|
| Pain-management support | TENS |
| Soft-tissue therapy | Ultrasonic |
| Therapeutic heating | Deep Heat |
| Sports rehabilitation | TENS / Ultrasonic / Deep Heat |
| Joint rehabilitation | TENS / Ultrasonic |
| Back physiotherapy | TENS / Deep Heat |
| Neck physiotherapy | TENS / Ultrasonic / Deep Heat |
| General rehabilitation | Combination of modalities |
The appropriate therapy should always be selected according to professional assessment.

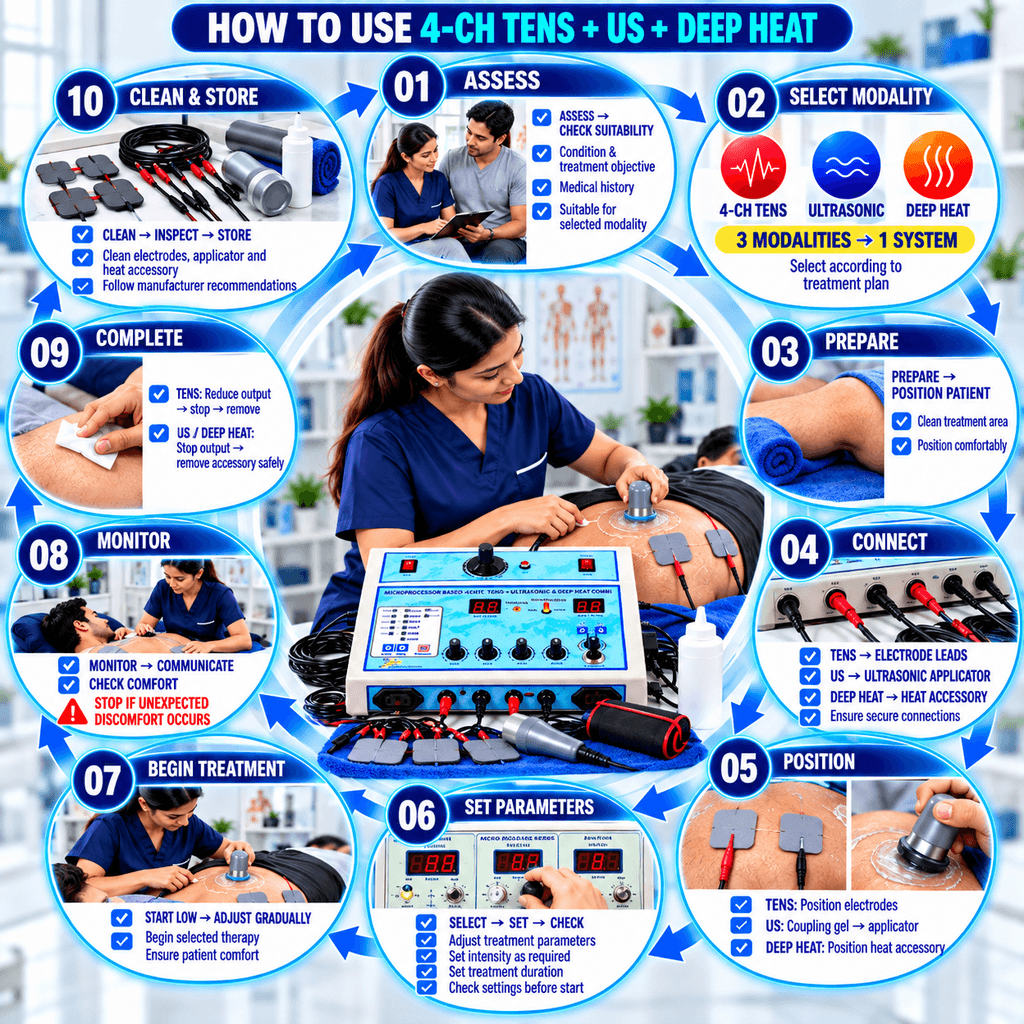

How to Use the 4-Ch TENS + US + Deep Heat Combo Physiotherapy Machine
Step 1: Assess the Patient
Evaluate the patient’s condition, treatment objective, medical history and suitability for the selected therapy.
Step 2: Select the Modality
Choose TENS, Ultrasonic Therapy or Deep Heat according to the treatment plan.
Step 3: Prepare the Treatment Area
Prepare the skin and treatment area according to the requirements of the selected modality.
Step 4: Connect the Accessories
Connect the appropriate TENS electrode leads, Ultrasonic applicator or Deep Heat accessory.
Step 5: Position the Accessories
Place TENS electrodes according to the prescribed treatment protocol. For Ultrasonic Therapy, apply suitable coupling medium before treatment.
Step 6: Select Treatment Parameters
Set the required program, intensity and treatment duration according to the patient’s treatment plan.
Step 7: Begin Treatment
For TENS, begin at a comfortable intensity and adjust gradually. For Ultrasonic and Deep Heat, use the appropriate application technique and settings.
Step 8: Monitor Patient Response
Observe the patient throughout the session and check for discomfort, excessive heat or unexpected sensations.
Step 9: Complete Treatment
Reduce electrical stimulation before stopping the TENS output. Complete Ultrasonic or Deep Heat therapy according to the selected protocol.
Step 10: Clean the Equipment
Clean reusable accessories as recommended by the manufacturer and store the equipment safely after treatment.
Safety Precautions
Before operating the 4-Ch TENS + US + Deep Heat Combo Physiotherapy Machine, trained users should follow appropriate safety procedures.
- Use the machine only by trained or qualified professionals.
- Check all cables, electrodes and applicators before treatment.
- Do not place electrodes over damaged or irritated skin.
- Follow correct electrode placement procedures.
- Do not use electrical stimulation across contraindicated areas.
- Patients with implanted electronic devices require appropriate medical guidance before electrical stimulation.
- Use Ultrasonic Therapy with suitable coupling medium.
- Do not apply excessive pressure with the Ultrasonic applicator.
- Monitor skin response during Deep Heat treatment.
- Avoid excessive heating.
- Stop treatment if unusual pain, burning, excessive discomfort or other unexpected reactions occur.
- Keep electrical components away from water.
- Follow the manufacturer’s instructions for operation, cleaning and maintenance.
Who Should Operate This Machine?
The 4-Ch TENS + US + Deep Heat Combo Physiotherapy Machine is intended for trained physiotherapists and qualified rehabilitation professionals.
The operator should determine:
- Appropriate treatment modality
- Electrode placement
- TENS intensity
- Ultrasonic settings
- Heat level
- Treatment duration
- Overall treatment sequence
Professional assessment is especially important when more than one modality is incorporated into a rehabilitation program.
Combination Machine vs Separate Therapy Machines
| Feature | 4-Ch Combination Machine | Separate Machines |
|---|---|---|
| TENS | Included | Separate unit |
| TENS channels | 4 | Model dependent |
| Ultrasonic Therapy | Included | Separate unit |
| Deep Heat | Included | Separate unit |
| Space requirement | Lower | Higher |
| Equipment management | Centralised | Multiple units |
| Treatment flexibility | High | Depends on equipment |
| Clinic setup | Compact | More equipment required |
The combination format can be particularly practical for clinics that want multiple therapy options without occupying additional space with separate units.

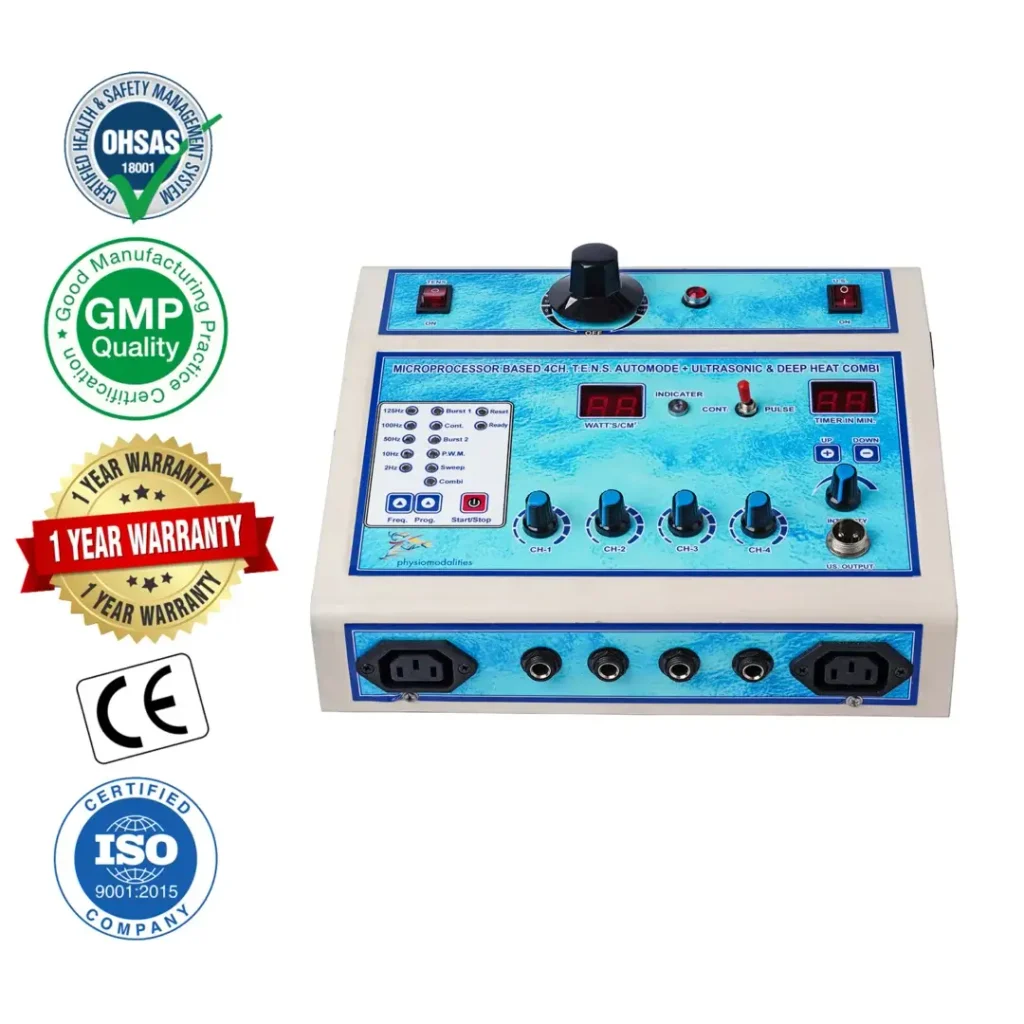

Technical Specifications
| Specification | Details |
|---|---|
| Product Name | 4-Ch TENS + US + Deep Heat Combo Physiotherapy Machine |
| Therapy 1 | 4-Channel TENS |
| Therapy 2 | Ultrasonic Therapy |
| Therapy 3 | Deep Heat |
| TENS Channels | 4 |
| Display | Digital display, model dependent |
| TENS Intensity | Adjustable |
| Ultrasonic Frequency | Model dependent |
| Ultrasonic Intensity | Model dependent |
| Treatment Timer | Model dependent |
| Deep Heat Output | Model dependent |
| Programs | Model dependent |
| Power Supply | Model dependent |
| Applications | Physiotherapy & Rehabilitation |
| Suitable For | Clinics, Rehab Centres & Sports Therapy Centres |
| Warranty | Confirm with supplier |
Note: Exact specifications may vary according to the particular model and configuration. Confirm the Ultrasonic frequency, heat technology, TENS parameters, programs, power rating and accessories before purchase.
Things to Consider Before Buying
When selecting a 4-Ch TENS + US + Deep Heat Combo Physiotherapy Machine, consider:
- Four-channel TENS configuration
- TENS operating modes
- TENS intensity range
- Ultrasonic frequency
- Ultrasonic intensity
- Deep Heat technology
- Heat adjustment range
- Treatment timer
- Digital display
- Electrode quality
- Ultrasonic applicator
- Heat accessories
- Machine construction
- Warranty
- Technical support
- Replacement accessory availability
A professional clinic should select the machine based on actual treatment requirements, patient volume and expected daily workload.
Why Choose PHYSIOMODALITIES™
PHYSIOMODALITIES ENTERPRISES provides physiotherapy and rehabilitation equipment for professional clinical environments.
The PHYSIOMODALITIES™ product range includes electrotherapy, Ultrasonic Therapy, Deep Heat and multifunctional physiotherapy systems.
The 4-Ch TENS + US + Deep Heat Combo Physiotherapy Machine is designed for professionals who want three therapy functions in one practical equipment setup.
Conclusion
The 4-Ch TENS + US + Deep Heat Combo Physiotherapy Machine combines 4-channel TENS, Ultrasonic Therapy and Deep Heat in a single multifunctional physiotherapy system. This combination gives trained professionals access to electrical stimulation, acoustic therapy and thermal therapy without requiring three separate machines.
Its four-channel TENS configuration provides flexible electrode-based treatment options, while the Ultrasonic and Deep Heat functions add further versatility for selected rehabilitation programs.
With appropriate patient assessment, correct treatment parameters and professional operation, this combination machine can be incorporated into physiotherapy, rehabilitation and sports-therapy environments.
Frequently Asked Questions
1. What is a 4-Ch TENS + US + Deep Heat Combo Machine?
It is a combination physiotherapy machine integrating 4-channel TENS, Ultrasonic Therapy and Deep Heat in one unit.
2. How many TENS channels does this machine have?
The machine is designed with 4 TENS channels for flexible electrode-based treatment.
3. What therapies are included?
It includes 4-channel TENS, Ultrasonic Therapy and Deep Heat.
4. Is it suitable for physiotherapy clinics?
Yes. It is designed for professional physiotherapy, rehabilitation and sports-therapy environments.
5. Who should operate the machine?
It should preferably be operated by trained physiotherapists or qualified rehabilitation professionals.
